Feature | Float / 2.1 MPa / Screwed | |
Category | Steam trap | |

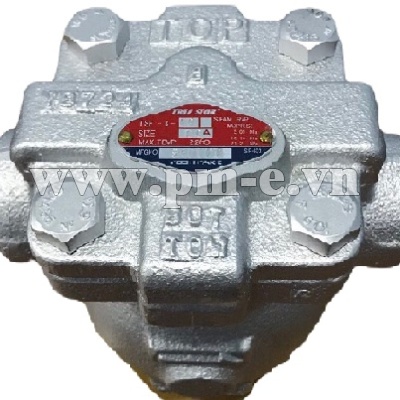

Type | Float trap | |
Specifications | Application | Steam condensate |
MPa | ||
Working pressure | TSF-8-5 : 0.01-0.5 MPa (0.5 MPa), TSF-8-10 : 0.01-1.0 MPa (1.0 MPa), TSF-8-21 : 0.01-2.1 MPa (2.1 MPa) | |
Max. temperature | 220 degrees C | |
Connection | JIS Rc screwed | |
Material | Body | Ductile cast iron |
Float | Stainless steel | |
Valve, valve seat | Stainless steel |
