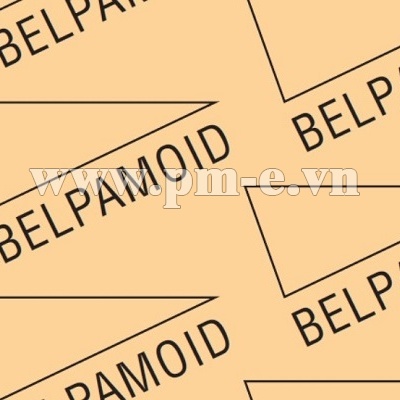

GIOĂNG KHÔNG AMIĂNG BELPAMOID
- Danh mục: GIOĂNG BÌA TẤM
- Nhãn hiệu:
- Giá:
- Model: BELPAMOID
- Size:
- Số lượng:
- Mua ngay Thêm vào giỏ
DOWNLOAD CATALOGGASKET MATERIAL
COMPOSITION
Cellulose based material impregnated with plasticised gelatine. Very economical material with excellent oil and fuel resistance, its main market is automotive. This material must be protected from sudden changes in humidity and temperature to prevent dimensional changes.
| TECHNICAL DATA | ||
|---|---|---|
| Standard sizes (mm). Other upon request | Rolls 1 meter width | |
| Standard thickness (mm). Other upon request | 0.25, 0.4, 0.8, 1.0, 1.2, 1.6, 2.0, 2.4, 3.2, 4.8 | |
| Density (±10%) | 0,8 g/cm³ | |
| Compressibility 70 Kg/cm3 | 25%-40% | |
| Recovery | >40% | |
| Tensile strength across grain | >12 MPa | |
| INCREASES AFTER IMMERSION 22 HR, 21ºC – 30 ºC in: | WEIGHT | THICKNESS |
| ASTM oil Nº3 | 15% | 5% |
| ASTM fuel B | 15% | 5% |
| Distilled water | 90% | 30% |
PRESSURE - TEMPERATURE DIAGRAM
P-T OPERATING GUIDELINES
- Usually satisfactory to use without reference to Montero. Technical examination is normally unnecessary.
- Must refer to Montero for advice. A technical examination is recommended.
- Area not recommended.
The P-T diagram helps the user or designer who often knows the operating temperature and pressure to carry out an initial selection of a suitable material. The P-T diagram cannot guarantee the suitability of a material for an application.
Good performance and long service life of gaskets depend in large measure on fitting and operation conditions, over which the manufacturer has no control. The data given on this technical sheet should not be used as application limits, but as guidance for an appropriate choice. We can offer guarantees only for the quality of our products.
