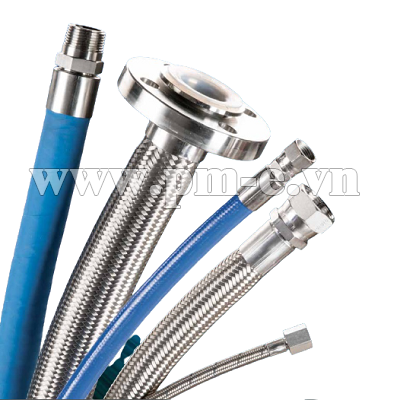

ỐNG PHỦ BỌC TEFLON - UNITEDFLEXIBLE - USA
HIỆU: UNITEDFLEXIBLE (US HOSE)
XUẤT XỨ: MỸ
Nếu quý anh/chị cần tư vấn và báo giá sản phẩm này xin vui lòng liên hệ nhanh với chúng tôi qua Hotline: 0766226161 - Tel: 02835352125 - Zalo: 0902720814 / 0907450506 / 0902601875 hoặc Email: info@pm-e.vn
Medium Pressure Smooth Bore Hose of PTFE SB Series • SB-SERIES
The Jackson smooth bore hose is constructed of an extruded inner-core of virgin PTFE or carbon black static dissipative PTFE with type 304 stainless steel wire braid reinforcement. The braid acts as a pressure carrier and protective covering. Jackson smooth bore hose is found in many of the toughest service applications, handling “problem” fluids such as acids, solvents, fuels, and chemicals of all types. Available with thin or heavy wall tub- ing of PTFE ( polytetrafluoro-ethylene).
Applications
Benefits
Part Number White Black |
Nominal ID |
Actual Size ID OD |
Maximum Working Pressure |
Minimum Burst Pressure |
Minimum Bend Radius |
Approximate Weight/Ft. |
||
S-3 TW |
S-3TW BLK |
3/16” |
.125” |
.23” |
3000 PSI |
12000 PSI |
2.0” |
.050 lbs. |
S-4 TW |
S-4TW BLK |
1/4” |
.19” |
.30” |
3000 PSI |
12000 PSI |
2.0” |
.060 lbs. |
S-5 TW |
S-5TW BLK |
5/16” |
.25” |
.37” |
3000 PSI |
12000 PSI |
2.3” |
.070 lbs. |
S-5Z |
|
5/16” |
.24” |
.45” |
4350 PSI |
17400 PSI |
2.5” |
.100 lbs. |
S-6 TW |
S-6TW BLK |
3/8” |
.32” |
.40” |
2500 PSI |
10000 PSI |
3.9” |
.090 lbs. |
S-7 TW |
|
3/8” |
.37” |
.50” |
2250 PSI |
9000 PSI |
4.5” |
.105 lbs. |
S-8 TW |
S-8TW BLK |
1/2” |
.41” |
.52” |
2000 PSI |
8000 PSI |
4.7” |
.115 lbs. |
S-10 TW |
S-10TW BLK |
5/8” |
.50” |
.59” |
1500 PSI |
6000 PSI |
5.3” |
.150 lbs. |
S-12 TW |
S-12TW BLK |
3/4” |
.62” |
.80” |
1200 PSI |
4800 PSI |
6.5” |
.225 lbs. |
S-14 TW |
|
3/4” |
.77” |
.89” |
1100 PSI |
4400 PSI |
7.4” |
.225 lbs. |
S-16 TW |
S-16TW BLK |
1” |
.87” |
1.05” |
1000 PSI |
4000 PSI |
7.8” |
.285 lbs. |
S-16Z |
|
1” |
.87” |
1.11” |
1250 PSI |
5000 PSI |
9.0” |
.576 lbs. |
S-18 TW |
|
1” |
1.00” |
1.18” |
900 PSI |
3600 PSI |
9.8” |
.335 lbs. |
S-20Z |
|
1-1/4” |
1.13” |
1.38” |
1000 PSI |
4000 PSI |
11.0” |
.585 lbs. |
THE JACKSON ADVANTAGE
We offer engineered solutions that address vibration, thermal, or pressure-related prob- lems as well as applications involving the transfer of liquids or gases. The hose and fittings included in this catalog are precisely manufactured and coupled to assure un- equaled quality and immediate response to your needs.
Rapid quotation and delivery response to even the most difficult applications are our specialties. We stock and supply standard medium pressure, ultra high pressure, con- voluted, smooth-bore, rubber-covered, and large bore fluoropolymer hoses with their as- sociated fittings, adapters, and accessories.
This catalog includes our full product line of chemical transfer and smooth bore hoses as well as associated products.
THE FLUOROPOLYMER ADVANTAGE
Chemical Resistance - Inert to practically all commer- cial chemicals, acids, alcohols, coolants, elastomers, petroleum compounds, solvents, vinyls, synthetic lubricants, & hydraulic fluids.
Flex & Shock Resistance - Not affected by continuous flexing, vibration, or impulse - withstands alternating cold and heat cycling.
High Flow Rates - Low coefficient of friction with anti- stick properties insures continuous lower pressure drop during service with a good pressure rating and full vacuum.
Light Weight - Easier to move, handle, and install than rubber hose with a comparable burst pressure rating - ideal as pigtail in gas handling and pneumatic systems where dew point must be low.
Non-Adhesive - Handles substances such as adhe- sives, asphalt, dyes, grease, glue, latex, lacquers, and paints - no carbon build up when used as a compres- sor discharge line.
Non-Contaminating - Will not contaminate material, fluid, or gas, non-conductive PTFE is FDA approved for food handling and pharmaceutical applications.
Resists Deterioration - Impervious to weather and can be stored for long periods without aging - will not age during service.
Steam Compatibility - Absorbs no moisture - rated for steam to 250 psi (406°F) - has low volumetric expansion characteristics - easy to clean and sterilize.
