Type SGF947 and SSF947 - Ống Composite hose - Unitedflexible (US HOSE)
Nếu quý anh/chị cần tư vấn và báo giá sản phẩm này xin vui lòng liên hệ nhanh với chúng tôi qua Hotline: 0766226161 - Tel: 02835352125 - Zalo: 0902720814 / 0907450506 / 0902601875 hoặc Email: info@pm-e.vn

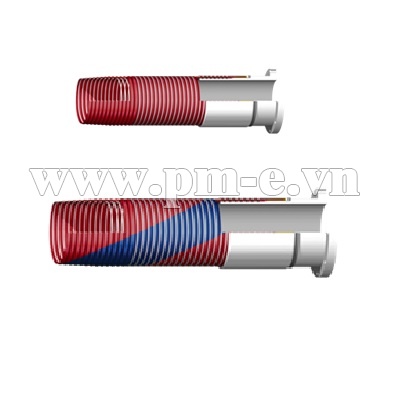

Construction: Color/Cover: SGF947 Red/PVC coated Nylon, Abrasion, Ozone resistant
SSF947 Red blue stripe/PVC coated Nylon, Abrasion, Ozone resistant
Inner Wire: T316 Stainless Steel Wire
Inner lining: PFA, FEP, ECTFE
Carcass: Polypropylene fabrics, films
Outer Wire: SGF947 Galvanized Steel SSF947 T316 Stainless Steel
Extra: Special Color Coding and branding
Physical properties: Temperature Range: -22°F to +212°F (-30°C to +100°C)
Maximum elongation: £10 on test pressure
Vacuum range: 26 inHg (660 mmHg), 0.9 bar
Electrical properties: Electrically Conductive
£2.5 ohm/m for sizes less than 2”
£1.0 ohm/m for size 2” and above
Standards: BS5842, NAHAD-600:2005
End Fittings: Specially designed end fittings have been developed for use with United Flexible composite hoses that have a unique leak-proof sealing face and specially machined helical spiral shank which engages into the corresponding internal helix wire when secured into the hose by either crimping or swaging the external ferrules. See page 22 for more information about end connections.
TECHNICAL DATA: TYPE SGF947 AND SSF947 |
|||||||||
Inside Diameter |
Working Pressure |
Min. Bend Radius |
Approx Weight |
Maximum Length |
|||||
Inches |
mm |
PSI |
Bar |
Inches |
mm |
lb/ft |
kg/m |
Feet |
Meters |
1 |
25 |
250 |
17 |
4 |
100 |
0.60 |
1.00 |
100 |
30 |
11/2 |
40 |
250 |
17 |
5 |
125 |
1.00 |
1.50 |
100 |
30 |
2 |
50 |
250 |
17 |
6 |
150 |
1.20 |
1.80 |
100 |
30 |
3 |
80 |
250 |
17 |
8 |
200 |
2.00 |
3.00 |
100 |
30 |
4 |
100 |
250 |
17 |
13 |
325 |
3.00 |
4.50 |
100 |
30 |
Pressure based on safety factor 4:1
Dimensions and weight are approximate and are subject to change
For additional technical data such as pressure drop, max. flow rates and tensile strength, please consult United Flexible engineering Increased operating temperatures will reduce working pressure of the assemblies
Fitting pressure rating may limit working pressure of the assembly Rated working pressure is @ 70°F (21°C)
