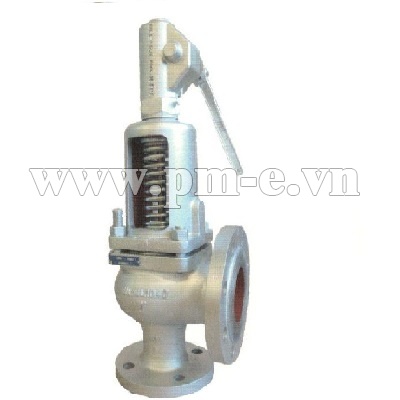

AF-9EN Full bore safety valve * Full bore safety valve of open type. * Large discharge capacity. * Due to lift lever mechanism, a discharge inspection can be manually performed at least 80% of working pressure. |
Feature | Full bore type / Flanged / Cast Iron / Closed type | |
Category | Safety valve | |
Type | Full bore type | |
Specifications | Application | Steam , Air , Other non-dangerous fluids |
MPa | ||
Working pressure | 0.045 - 1.6 MPa (20-100A) , 0.045 - 1.25 MPa (125A) , 0.045 - 1.0 MPa (150A) , According to PT rating | |
Connection | Inlet: PN16, Outlet: PN10 EN1092-2 | |
Max Temperature | 250 degree C | |
Material | Body | Cast Iron |
Spring chamber | Ductile Cast Iron | |
Valve | Stainless steel | |
Valve seat | Stainless steel |
