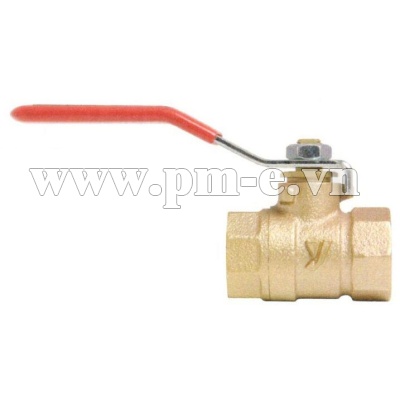

Van BI
Model: BLV-1
Thân của BLV-1 được làm bằng đồng và bi được làm bằng thép không gỉ hoặc mạ crom.
Áp dụng rộng rãi cho ứng dụng hơi nước, không khí, nước hoặc dầu.
Feature | Ball Valve | |
Specifications | Application | Steam , Air , Cold and hot water , Oil , Other non dangerous fluid |
Max. pressure | "Saturated steam: 1.0"MPa | |
Max. pressure | Water, oil, air or other non-dangerous fluid at 40 degree(C) or lower: 4.12 MPa | |
Connection | JIS Rc screwed | |
Material | Body | Bronze |
Ball | Cr plated brass or stainless steel | |
Stem | Brass |
