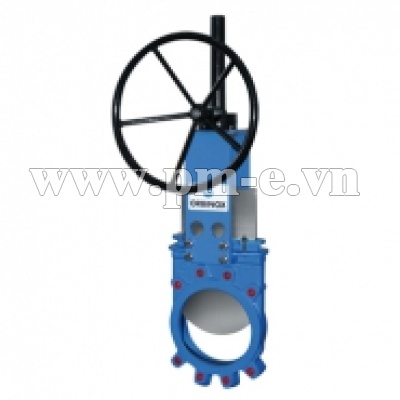

Van dao Orbinox Model HB - BIDIRECTIONAL - HIGH PRESSURE
HB MODEL
Bi-directional high pressure wafer style knife gate valve for general industrial and water applications
The HB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Wastewater treatment plants
Chemical plants
Food and Beverage
etc.
SIZESDN 50 to DN 300 (larger diameters on request)
WORKING PRESSUREDN 50 to DN 300: 16 kg/cm²
STANDARD FLANGE CONNECTIONDIN PN 16
OTHER FLANGE CONNECTION (ON REQUEST)
FACE TO FACE DIMENSIONS ACC.EN558-1 serie20 (DIN3202 K1)
DIRECTIVESDIR 2006/42/CE (MACHINES)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones
