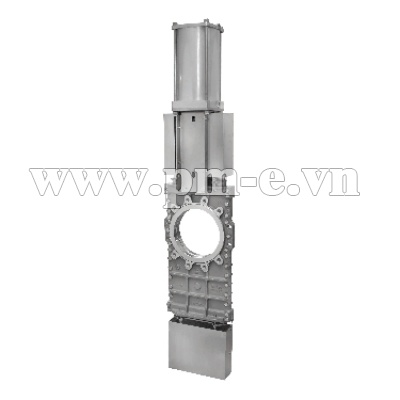

Van dao Orbinox Model: TK - THROUGH CONDUIT-HIGH PERFORMANCE
TK MODEL
Through conduit bi-directional high performance wafer style knife gate valve for high consistency or concentration media or fluids
The TK model knife gate is a bi-directional wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:
Pulp & Paper
Wastewater Treatment
Power
Chemical
etc.
SIZESDN 50 to DN 900 (larger diameters on request)
WORKING PRESSUREDN 50 to DN 250: 10 bar
DN 300 to DN 900: 6 bar (1)
(1) 8 bar with duplex gate
STANDARD FLANGE CONNECTIONDIN PN 10
OTHER FLANGE CONNECTION (ON REQUEST)ANSI B16.5 (class 150)
DIN PN 6
DIN PN 16
DIN PN 25
BS "D" and "E"
DIRECTIVESDIR 2006/42/CE (MACHINES)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones.
